Construction Drawing Revision Control Australia: From RFI to Reissue

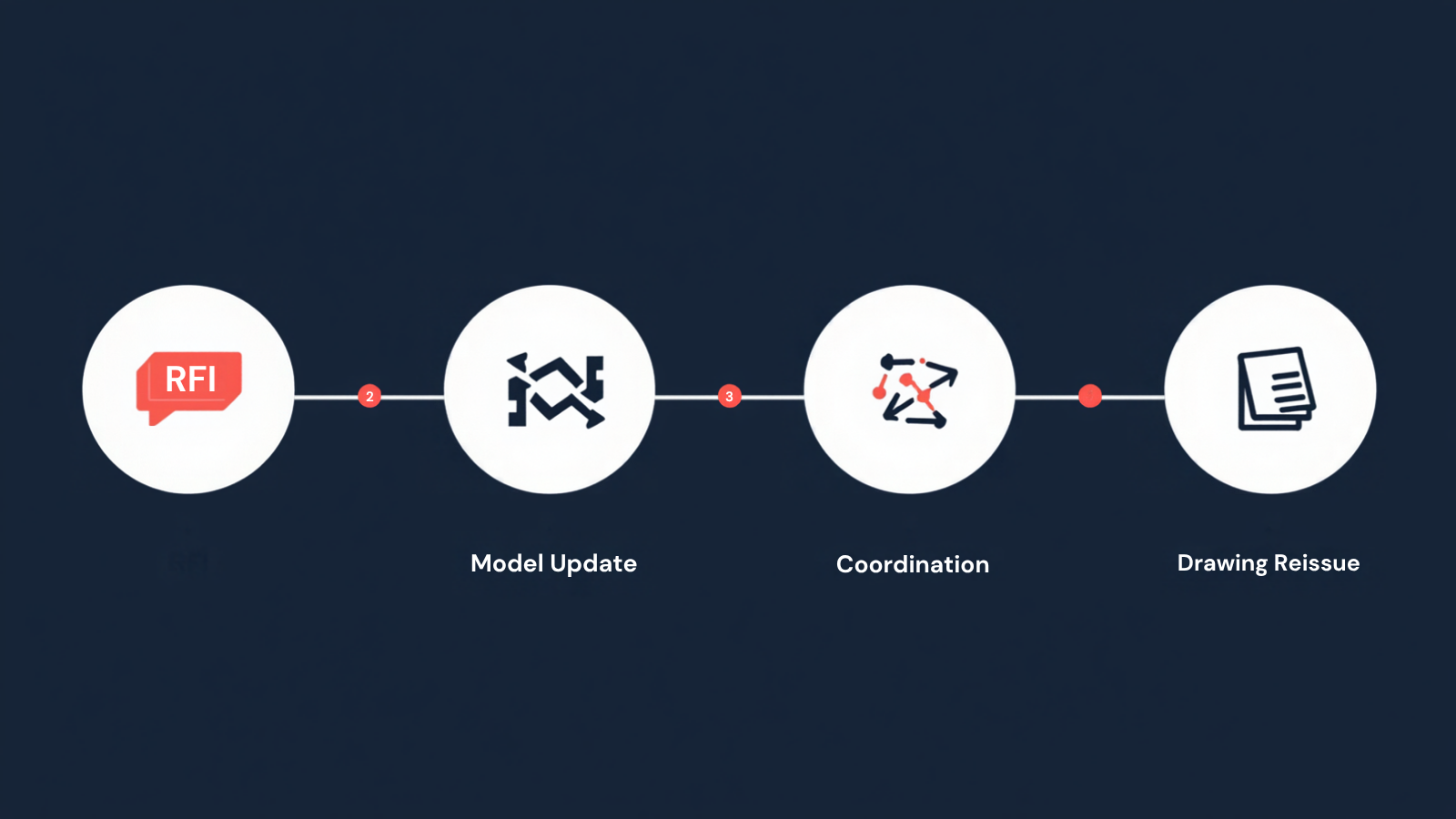

This guide explains an eight step workflow for managing changes from RFI and authorised project information through model updates, coordination, drawing reissue and downstream communication.

Why Drawing Revision Control Australia Matters on Live Projects

Construction information rarely develops in a perfectly linear sequence. Architectural layouts change. Structural members are revised. Equipment suppliers confirm final dimensions. Builders issue comments. Fabricators identify missing details. Site conditions reveal constraints that were not visible during design.

RFIs and technical queries are raised to clarify these issues. The difficulty begins when multiple teams are already producing deliverables from the information that existed before the change. For example, a structural beam may move after an MEPF coordination model has already been developed around it.

That change could affect the structural or steel model, fabrication shop drawings, erection or GA drawings, connection geometry, service routes, penetrations, secondary supports, quantity take offs, material schedules, BOQ quantities, drawing registers and construction issue packages.

Good drawing revision control Australia workflows identify those relationships before the revised information moves downstream.

Revision Numbers Are Only Part of Revision Control

A revision number tells a user that a document has changed. It does not necessarily tell them why it changed, what changed, which other files are affected, whether the change has been approved, whether fabrication has started, whether quantities have been updated, whether the superseded document is still accessible, or whether another discipline needs to respond.

This distinction is especially important on multidisciplinary projects. A drawing marked Revision C can still create coordination risk if connected models, schedules or drawings remain on Revision B.

For BIM based projects, this principle aligns with broader information management practices. ISO 19650-1 provides concepts and principles for BIM information management, including exchanging, recording, versioning and organising information across project participants. Project teams can review the official ISO 19650-1 information management standard for further context. For Australian BIM implementation, the NATSPEC National BIM Guide resources provide guidance intended to help clients, consultants and stakeholders clarify BIM requirements consistently.

The 8-Step Drawing Revision Control Australia Workflow

Step 1: Establish the Current Information Basis

Before changing a model or drawing, confirm what the team is currently working from. This can include design drawings, specifications, structural models, architectural models, MEPF models, equipment schedules, connection information, approved markups, RFIs, technical query responses, drawing registers and model registers.

The objective is to create a clear baseline. If the team cannot identify the previous authorised basis, it becomes much harder to determine what the revision actually changes.

For structural steel packages, the model, assembly drawings, part drawings, erection drawings and registers should represent the same controlled information set. J&F Australia’s Structural Steel Detailing Shop Drawing Package guide explains how models, workshop drawings, erection information and revision registers operate as connected deliverables.

Step 2: Confirm What Actually Changed

A revised drawing does not mean every item on the drawing changed. The team should identify the specific difference between the previous and current issue. Typical changes include member size, beam or column position, grid location, floor level, equipment position, opening size, service route, connection configuration, wall or ceiling layout, material specification and scope boundary.

The source of the change matters as well. Was it an approved consultant revision, an RFI response, a builder markup, a supplier update, a coordination comment or a site instruction? The answer determines whether the information is authorised for incorporation or still requires clarification.

An RFI should not automatically be treated as design authority simply because a response exists. The project’s agreed responsibility and approval process should determine the applicable information basis.

Step 3: Map the Downstream Impact

This is the stage most likely to be missed. The revision appeared in one document, but what else depends on that information? Suppose a primary steel beam changes section. The impact review may need to consider the 3D steel model, assembly drawing, part drawings, connection plates, bolt arrangements, weld information, material lists, member marks, erection plans, secondary steel, MEPF services around the beam, penetrations, quantity calculations and procurement records.

Do not update only the drawing where the comment first appeared. Instead, trace the information dependency. J&F Australia’s guide to Fabrication Shop Drawings vs Erection Drawings Australia explains why workshop and site drawings serve different users but still need to remain aligned with the same steel model and revision basis. For model driven steel packages, 3D Steel Modelling Australia provides further context on how coordinated geometry supports drawing production.

Step 4: Update Controlled Models and Documents

Once the authorised change and its impact are understood, the controlled project information can be updated. The sequence matters. Where drawings are generated from a model, the controlled model should normally be updated before dependent drawings are regenerated.

For example: authorised structural revision, then steel model update, then connection and detail review, then fabrication drawings, then erection drawings, then reports and registers.

Updating disconnected documents individually can create inconsistencies. A fabrication drawing may show the new member while the erection plan still shows the old mark. A quantity schedule may contain the new section while the material list remains unchanged. A model may be updated but an old PDF remains available for fabrication.

The Fabrication Shop Drawings Australia service page outlines the connection between steel models, member details, shop drawings, lists, registers and controlled drawing revisions. The related Erection and GA Drawings Australia service should also be considered where revised member geometry affects site arrangement.

Step 5: Recheck Multidisciplinary Interfaces

Not every change remains within the discipline where it originated. A structural revision can affect services. A mechanical change can affect steel supports. An architectural ceiling revision can affect ductwork, containment, lighting and fire services. An equipment change can affect power, cooling, access and structural support.

For this reason, BIM revision control Australia workflows need to consider spatial and information dependencies. Imagine an HVAC duct is rerouted to clear a structural beam. The new route may now conflict with cable containment, sprinkler pipework, lighting, ceiling zones, maintenance access or structural supports. Solving one clash does not automatically mean the overall coordination problem has been solved.

The MEPF BIM Coordination for Services-Heavy Projects Australia guide explains how discipline models, project backgrounds, issue tracking and shop drawings should remain connected during coordination. J&F Australia also provides MEPF Services Coordination Australia support for defined multidisciplinary packages. For open BIM environments, buildingSMART’s BIM Collaboration Format provides a standard method for communicating and tracking model based issues and their status between software environments. See the official buildingSMART BIM Collaboration Format overview.

Step 6: Review Quantities, BOQs and Commercial Records

A technical revision can also be a commercial revision. Suppose a structural frame changes from one steel section to another. The model may be correct. The shop drawings may be correct. But if the quantity take off or BOQ still reflects the previous section, the technical and commercial records now describe different scopes.

The same issue can occur when wall areas change, pipe routes increase, duct sizes change, equipment quantities change, structural supports are added, openings are revised or material specifications change.

Quantity records should therefore retain a clear measurement basis. The team should be able to identify which drawing, model, schedule and revision was measured. J&F Australia’s Quantity Take-Off vs BOQ Australia guide explains why measurement basis, assumptions and revision references are important to traceable commercial documentation. For project support, see Quantity Surveying Services Australia and BOQ Preparation Services Australia.

Step 7: Reissue with Clear Revision and Status

Updating information internally is not enough. The revised package has to be issued in a way that allows recipients to distinguish it from the superseded information. A controlled reissue should typically make clear the document number, revision, revision date, issue status, description of change, package or zone, applicable model version, superseded document reference and outstanding comments where relevant.

Revision and status should not be confused. A newer file may be issued for review, while an older file may still be the formally approved construction issue. The applicable project procedures determine which information can be used for construction, fabrication or procurement. This distinction becomes particularly important when project teams exchange models more frequently than formal construction drawings.

Step 8: Close the Change Loop

The final step in drawing revision control Australia is confirming that the revised information has reached every affected workflow.

Revision control ends when the downstream impact is addressed, not when the drawing is saved.

Drawing Revision Control Australia for Structural Steel

Steel detailing is particularly sensitive to revisions because a single model change can propagate into many connected outputs. Consider a beam with a revised connection. The change could affect end plates, cleats, stiffeners, bolt holes, welds, assembly marks, part marks, material lists, NC outputs, fabrication drawings and erection drawings.

If fabrication has already started, the problem changes again. The team now needs to understand whether material has been ordered, cut, drilled, welded or assembled. This is why shop drawing revision control should consider production status as well as drawing status. A technically small revision can become commercially significant once the package enters fabrication.

Drawing Revision Control Australia for MEPF and BIM

Services heavy projects create a different revision challenge. A revised equipment location might change mechanical routes, electrical connections, fire services, plumbing, access clearances, support steel or builder’s work openings. The model may contain dozens of downstream dependencies.

This is particularly relevant for data centres, healthcare facilities, plantrooms and other high services density environments. J&F Australia’s Data Centre BIM, MEPF, Steel and QS Support guide examines how a single change can cross several technical and commercial workflows. On these projects, revision control should be treated as an interface management process rather than a drawing editing exercise.

Quantity Surveying and BOQ Revisions

A technical revision can also be a commercial revision. Quantity records should retain a clear measurement basis so the team can identify which drawing, model, schedule and revision was measured, and the relevant quantity take off and BOQ can be reviewed whenever a revision changes measurable scope, material quantities or package boundaries.

Common Drawing Revision Control Australia Failures

These failures are exactly why construction drawing revision control needs to extend beyond document numbering.

A Practical Pre-Reissue Checklist

Before releasing a revised package, check the following.

How J&F Australia Supports Revision Controlled Delivery

J&F Australia supports Australian builders, contractors, fabricators, consultants and project teams with coordinated engineering documentation across structural steel detailing, 3D steel modelling, fabrication shop drawings, erection and GA drawings, connection detailing support, rebar documentation, MEPF BIM modelling, MEPF shop drawings, services coordination, quantity take offs, BOQ preparation and quantity surveying support.

Within the agreed project scope, revised authorised information can be reviewed against affected models, drawings, quantities and documentation outputs. Structural design decisions, engineering approval, fabrication approval, site verification, certification and statutory responsibilities remain with the appointed responsible parties unless expressly included under an authorised scope.

For a project specific discussion, use the J&F Australia project enquiry form.

Drawing Revision Control Australia FAQs

These questions summarise the purpose, structure, tender use, revision control and responsibility boundaries for revision controlled construction documentation.

Final Takeaway

Effective drawing revision control Australia starts with a simple change in mindset. Do not ask only, “has the latest drawing been issued?” Ask instead, “what models, drawings, quantities, fabrication activities and site decisions depend on the information that just changed?”

A controlled process establishes the previous information basis, identifies the authorised change, maps downstream impacts, updates connected outputs, rechecks multidisciplinary interfaces, reviews quantities, issues the revised package and confirms that superseded information is no longer driving work. That is the path from RFI to controlled reissue, and on fast moving construction projects, that traceability can be just as important as the revision itself.
