Connection Detailing Services

Steel connection detailing support for fabrication-ready documentation

Connection detailing support Australia projects require clear translation of approved connection information into coordinated model geometry, shop drawings and fabrication details.

Our team can develop plates, cleats, end plates, base plates, stiffeners, splice components, bolt groups, weld information and related connection geometry from the design information supplied by the responsible project team.

The workflow is intended to improve clarity between structural members, connection components, assemblies, fabrication drawings and revision records. It does not replace structural connection design or engineering certification where those services are outside the agreed scope.

Approved Inputs

Detailing based on issued design drawings, calculations, schedules, sketches and agreed markups.

Model Coordination

Connection geometry coordinated with member sizes, orientations, levels and fabrication interfaces.

Revision Control

Updates managed against comments, RFIs, revised drawings and approved connection changes.

Connection detailing support Australia workflow for steel fabrication drawings

Support Scope

Connection detailing outputs we can support

The exact deliverables depend on the project’s approved design basis, modelling requirements, fabrication standards, drawing templates and the responsibilities defined between the engineer, fabricator and detailing team.

Output 01

Modelled Connection Geometry

Connection plates, cleats, stiffeners, bolt groups, weld preparations and related components modelled against the approved connection information.

PlatesBoltsWelds

Output 02

Connection Shop Drawings

Connection details incorporated into assembly drawings, part drawings and fabrication documentation with dimensions, references and material information.

AssembliesPartsDetails

Output 03

Markups and Design-Sketch Updates

Detailing updates based on engineer markups, connection sketches, schedules, calculation outputs and agreed technical directions.

MarkupsSketchesSchedules

Output 04

Revision and Comment Support

Controlled changes to connection models and drawings following RFIs, coordination comments, design revisions and fabrication review feedback.

RFIsRevisionsComments

Output 05

Connection Schedules and References

Connection marks, component references and supporting schedules coordinated with member and assembly identification where required.

MarksReferencesReports

Output 06

Fabrication Coordination Inputs

Support for reviewing access, edge distances, plate fit-up, bolt placement, weld visibility and connection interfaces before drawing issue.

Fit-UpAccessCoordination

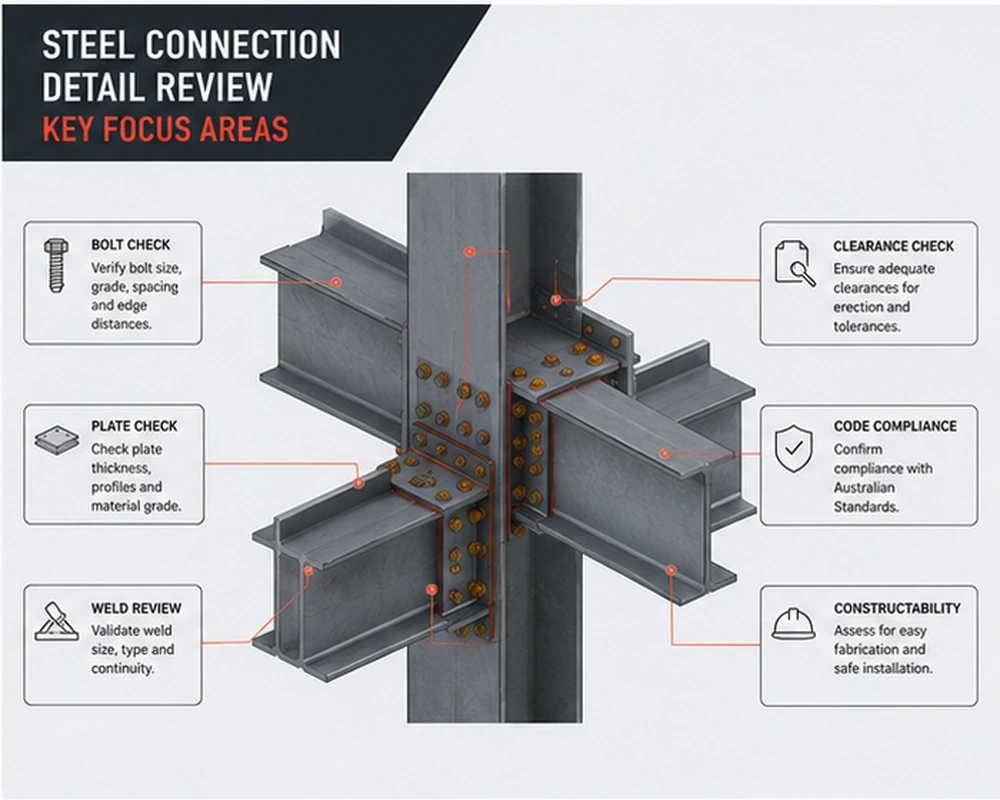

Steel connection detail review Australia with plates bolts and welds

Connection Elements

Detailing support across common steel connection components

A connection is made up of several coordinated components, each of which must align with the supporting member geometry and the approved engineering information.

Our detailing scope may include fin plates, end plates, angle cleats, shear tabs, splice plates, gusset plates, base plates, cap plates, stiffeners, haunches, brackets, bolt groups, holes, slots, weld preparations and connection-related member modifications.

The team can also support defined interfaces involving beams, columns, bracing, trusses, stairs, platforms, equipment supports and secondary steel. Connection types and component dimensions are developed only from approved or project-authorised information.

✓Beam-to-column connection details

✓Beam splice and column splice details

✓Bracing, gusset and cleat details

✓Base plate and holding-down interfaces

✓Stiffeners, haunches and reinforcement plates

✓Bolted and welded fabrication details

Six-Stage Workflow

From approved connection inputs to review-ready details

Our workflow keeps connection inputs, model geometry, drawing extraction, technical queries, checking and revision updates connected through a controlled detailing process.

Stage 01

Input and Scope Review

Review structural drawings, connection schedules, sketches, calculations, specifications, project standards, model files and the agreed division of responsibility.

Stage 02

Member and Interface Check

Confirm connected member sizes, orientations, levels, offsets, available space and interfaces with adjacent steel or construction elements.

Stage 03

Connection Modelling

Develop the approved plates, cleats, stiffeners, bolts, holes, weld-related geometry and connection components within the coordinated steel model.

Stage 04

Drawing and Schedule Development

Prepare connection details within assembly drawings, part drawings, schedules and related fabrication outputs using the required project conventions.

Stage 05

Checking and Technical Queries

Review geometry, dimensions, component references, edge distances, bolt access, weld information and consistency with the approved connection basis.

Stage 06

Comments and Revision Issue

Incorporate agreed review comments and approved design changes, update affected drawings and maintain the required revision and issue records.

Quality Checks

Six connection-detailing checks before drawing issue

Connection details should be reviewed as coordinated fabrication information rather than as isolated plates, bolts or weld symbols.

Checks are carried out against the approved inputs and the agreed detailing responsibility. Where a conflict, missing dimension or unclear design direction is identified, the issue should be raised through the project’s technical-query or RFI process rather than resolved through an unapproved assumption.

01Connected-member size, level and orientation

02Plate dimensions, position and fit-up

03Bolt quantity, diameter, holes and access

04Weld information and drawing visibility

05Assembly, part and connection-mark consistency

06Revision status and approved-comment closure

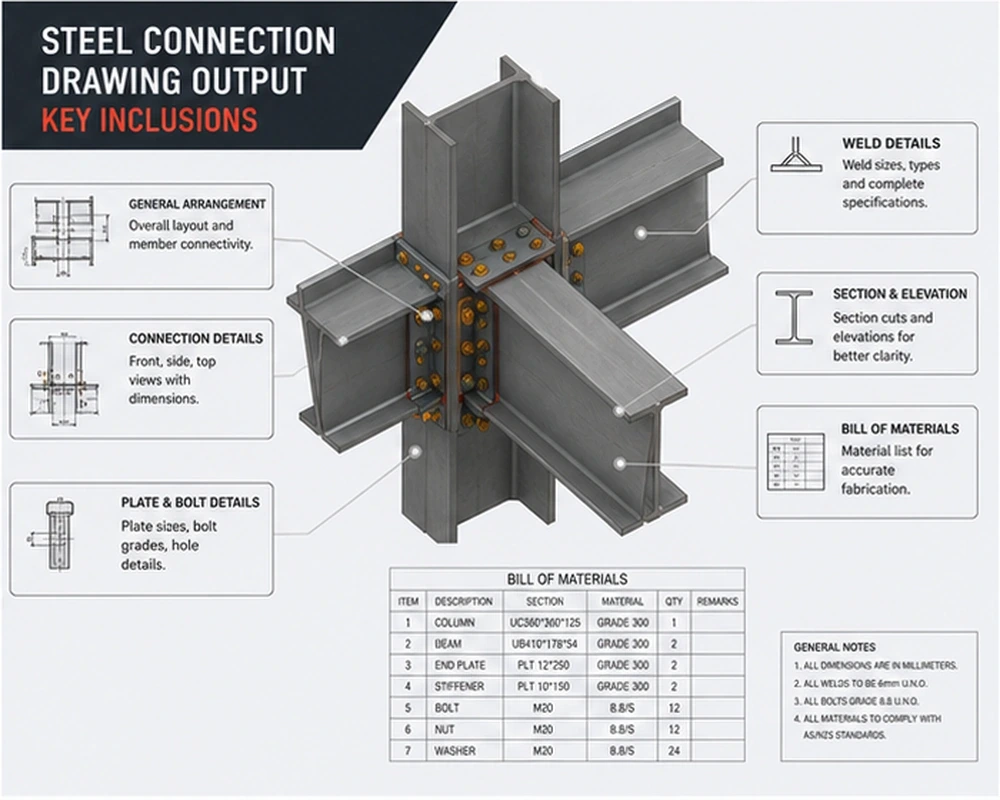

Steel connection drawing output Australia for fabrication review

Project Inputs

Information required for connection detailing support

Current, coordinated and approved inputs help the detailing team avoid unnecessary assumptions and identify technical questions before they affect model development or fabrication drawing production.

Input 01

Structural and connection information

Issued structural drawings, member schedules, connection schedules, sketches, calculations, typical details and engineer-approved markups relevant to the package.

Input 02

Fabrication and documentation standards

Drawing templates, modelling standards, bolt and weld conventions, material specifications, naming requirements, software versions and issue procedures.

Input 03

Scope, responsibilities and programme

Defined connection-design responsibility, detailing boundaries, deliverables, review stages, nominated contacts, priority packages and milestone dates.

Connection detailing should be coordinated with the approved engineering design, project specifications and applicable building requirements. For national building provisions, refer to the National Construction Code. J&F Australia provides connection modelling, detailing and documentation support within the agreed scope. Structural connection design, verification, statutory approval and professional certification remain with the appropriately appointed responsible professionals unless expressly included under a separate authorised scope.

Project Applications

Connection detailing support across steel project packages

Support can be structured for a complete steel package, a defined connection group, a particular building zone or a revision-intensive package requiring additional detailing capacity.

Commercial Buildings

Steel frames, roof steel, stairs, canopies, façade supports and secondary-steel connection packages.

Industrial Facilities

Equipment supports, access platforms, pipe supports, maintenance structures and process-related steel interfaces.

Data Centres

Plant steel, support frames, access structures and services-heavy interfaces requiring controlled coordination.

Infrastructure Packages

Defined structural and temporary steel packages with strict drawing, revision and interface requirements.

FAQ

Connection detailing support Australia FAQs

Common questions about approved connection inputs, steel detailing responsibilities, drawing outputs, technical queries and revision support.

What is included in steel connection detailing support?

Support can include modelling approved connection geometry, preparing connection details within shop drawings, coordinating plates, cleats, stiffeners, bolts and weld information, incorporating engineer markups, maintaining connection references and updating affected outputs through agreed revision cycles.

Does J&F Australia design structural steel connections?

This page covers connection detailing support based on approved design information. Structural connection design, engineering verification and certification are not assumed to be included unless they are expressly defined under a separate authorised scope with the required responsible professionals.

Which connection inputs are required before detailing starts?

Typical inputs include structural drawings, member schedules, connection schedules, sketches, calculations, typical details, design markups, specifications, modelling standards and the agreed division of responsibility between the engineer, fabricator and detailing team.

Can connection details be updated after engineer or fabricator review?

Yes. Approved comments, revised sketches, RFIs and design updates can be incorporated into the affected connection model, assembly drawings, part drawings and schedules. The team follows the project’s revision and document-control requirements for reissue.

Can you support only a specific connection type or project zone?

Yes. The scope can be limited to a defined connection family, structural zone, building level, fabrication package or revision package. Clear package boundaries and current approved inputs should be confirmed before work begins.

How are unclear or conflicting connection details managed?

Where the supplied documents contain a conflict, missing dimension or unclear design direction, the item is recorded and raised through the agreed technical-query or RFI process. Unapproved engineering assumptions should not be introduced into fabrication documentation.
